Stowood Visi-Download

Stowood’s download, analysis, and reporting software for oximeters and capnometers allowing multi-channel playback and a single platform for download, analysis and interpretation of results

Compatible with multiple manufacturers’ clinical devices (oximeters, capnometers, …)

Compatible with Windows XP, Windows 7, Windows 10.

The current build is 300519 with patch 210819.

SKU: VDL Category:

Key Features

  • Oximetry/Capnography download & analysis software
  • Single interface, multiple manufacturer compatibility

Stowood’s easy-to-use download, analysis, and reporting software for multiple manufacturers’ oximeters and capnometers allowing multi-channel playback and a single platform for download, analysis and interpretation of results.

Multi-device:

Visi-Download gets you away from simplistic manufacturer`s own offerings or limited report generating software.

Multi-lingual:

Full six language implementation, installation, programme, manual, help file and reports in English, French, German, Spanish, Italian, and Dutch.

Presentation with high quality graphics:

View the signals any way you like (full control over scales, time axes, compression).

Create, save and apply your preferred methods of viewing.

Device events are marked on traces (e.g. low perfusion, artefact etc), and these or other periods may be automatically or manually by marking excluded from analysis.

Full statistical analysis:

Desaturations (dip), pulse rate (rise) and CO2 analyses are configurable, with graphics and data tables – including Delta Index and Rapid Resaturation analyses. Uses a published desaturation algorithm**.
** Ref: Stradling J. R. & Crosby J. BMJ 1990 300 75-78

Event confirmation and Editing:

Events (e.g. low perfusion, artefact etc) may be viewed and fully edited (start/ end, added, deleted) in any time axis.

• Individually configurable analysis and reports
• Full statistical analysis

Modular licence key.
Supplied via the internet or on CD.

Compatible devices
Manufacturer – Device(s)

BCI – Capnocheck SLEEP/Oxi-Pulse 3304, SPECTRO2 10/20, SPECTRO230
Bitmos – sat 801, 801+, 805, 816, 901
BMC – Polywatch
Creative – PC-68B
GE/Datex-Ohmeda – 3700, 3740, 3800, 3900, TruSat
Konica Minolta – Pulsox 3i, 3iA, 300i
Masimo – Radical, Rad-5, Rad-57, Radical-7, Radical-7 Touch, Rad-8, Rad-87, Rad-9, Rad-97
Mindray – PM60
Nonin – 2500 Palmsat, 7500 Benchtop, 3150 WristOx2 Bluetooth, RespSense II ETCO2, LifeSense II ETCO2
Radiometer – TCM5, TCM4, TCM40, TCM 400, TCM TOSCA, TCM CombiM, TOSCA 500, TOSCA
Sentec – SDMS CO2 (v8.00, v08.02.1)
Stowood – Grey Flash, Black Flash, Black Flash Plus, Black Shadow, Visi-System
Viatom – Checkme O2

Coming soon:

Masimo Rad-97 with ETCO2

Compatible with Windows XP, Windows 7 and Windows 10.

The Visi-Download trial/ demo installation enables you to install Visi-Download and use the software with a 30-day/ 12-download limit.

How? Simply send us an email with your particulars (name, affiliation, address etc) or phone us on +44 (0) 1 865 358 860 for a password to access our secure downloads page.

Visi-Download uses an electronic software licence key as an alternative to a hardware licence key. Following purchase, a ‘licence key’ – a code number – will need to be input to the computer to ‘reactivate’ it.

SpO2 Analyses include:
Analysis Examples

Distribution and Cumulative Graphics (adjustable axes)
Mean
Median
Mode
5th/95th percentiles
Dip rates (3 definable levels)
Mean nadir
Delta Index
Rapid Resaturation & Desaturation Indices
SpO2 Minima
Time below xx%
Lowest saturation

Pulse Rate Analyses:

Distribution and Cumulative Graphics (axes adjustable)
Mean
Median
Mode
SD
Pulse rate rises (3 definable levels)
Minima
Maxima, etc

PCO2 Analyses:

Distribution and Cumulative Graphics (axes adjustable)
Mean
Median
Mode
5th/95th percentiles
SD
Minima
Maxima etc

Sound/ Snoring:

Events at calibrated sound levels

Respiratory:

Apnoea/ Hypopnoea
Obstructive/ central/ paradox
AHI by body position

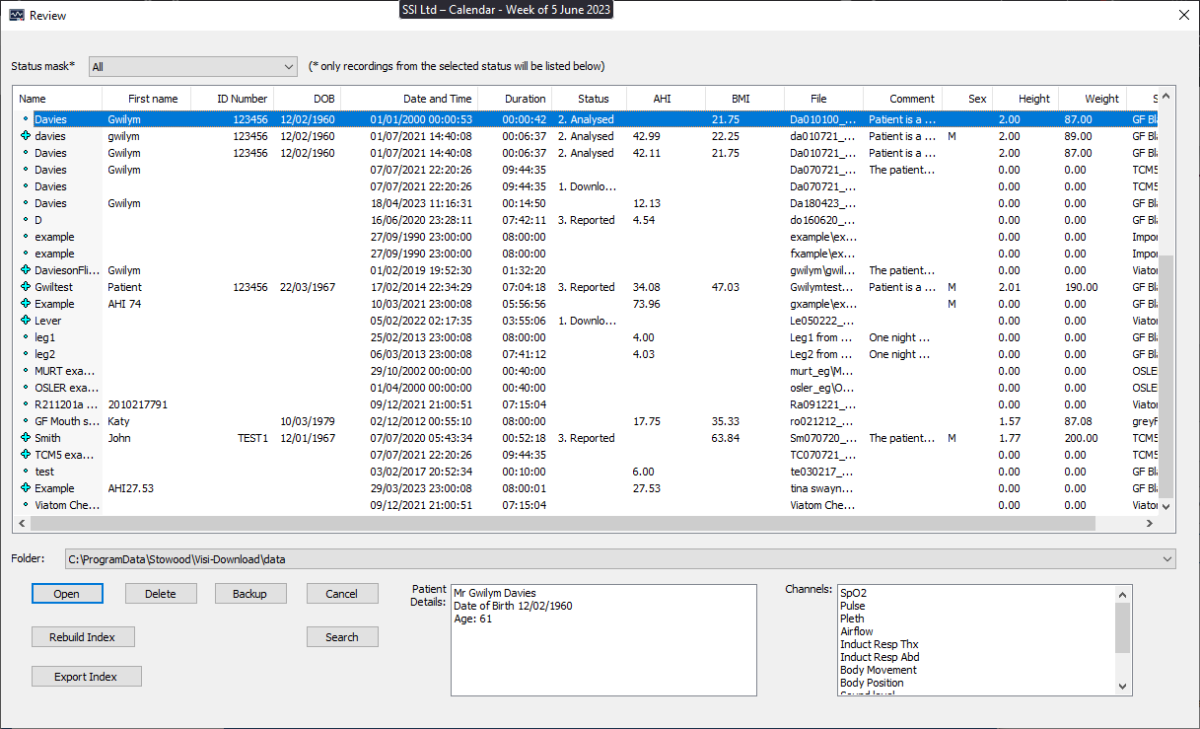

Recording archival, select recordings on the PC, or the archive by: name, ID number, NHS number, DOB, by reverse chronological order or alphabetically.
Import data from other recordings, including Actiwatch and EDF files.
Artefact and cut-off rejection, easily adjustable axes, user set montages, editable detected events.
Export all or selected period/channels of data to database or spreadsheet (Text, Excel, Matlab, EDF formats)
Combining (merging) interrupted recordings, or splitting recordings of more than one subject and saving separately.
Comments, diagnoses may be entered at the keyboard for printing
Timesaving “Download, analyse and print in one“ feature.
72 day capability for long-term oximetry.
Configurable reports for the hospital/lab (headings, pages, axes etc.) and printed in B&W or colour, on screen, on paper in International (e.g. A4) or US letter page sizes, and as Adobe .pdf files for computer faxing or emailing. Uses metric or US measurements and dates in any Windows format.

The chart screen for viewing simple oximetry and pulse rate data is shown in the picture below (SpO2 in red and and Pulse Rate in blue).

SPO2 and Pulse Rate
Zoom in to see sections in detail. The bars below the axes show the detected desaturation and pulse rises.

Analysis Reports

Reports can be selected from default analyses, with fully customisable plots, tables and graphs in a number of styles.

ComponentMinimum
Operating System
WinXP, Windows 7
Processor1GHz (32-bit)
2GHz (64-bit)
Memory1 GB (32-bit)
2 GB (64-bit)
Hard drive16 GB (32-bit)
20 GB (64-bit)
GraphicsDirectX 9 graphics device with WDDM 1.0 or higher driver
USB1 spare port

The user needs read/write access to:
Windows XP
C:\Documents and Settings\All Users\Application Data\Stowood\
and all its subfolders.

Windows 7 (32 bit and 64 bit)
C:\ProgramData\Stowood\
and all its subfolders.

During installation administrator rights are required.
